Creating a no-thrills custom type provider in F# 3.0 – some progress

I thought I would come at this from a different angle today. Following on from comments on the previous post, I decided it would make sense to try and find out what F#/Visual Studio does when I add a reference to my type provider.

So I have added a separate solution TypeProviderConsumer and opened that in another instance of VS 11. I create an empty F# console app project, and then go back to my type provider solution. Having corrected the omission that Ramon mentioned in a comment on my previous post, my type provider now looks like this:

using System;
using System.Reflection;
using Microsoft.FSharp.Core;
using Microsoft.FSharp.Core.CompilerServices;

[Serializable, TypeProvider, CompilationMapping(SourceConstructFlags.ObjectType)]
public class BasicTypeProvider : ITypeProvider, IProvidedNamespace, IDisposable
{
    Type baseType;

    public BasicTypeProvider(TypeProviderConfig config)
    {
        baseType = typeof(StaticType);
    }

    public Type ApplyStaticArguments(Type typeWithoutArguments, string typeNameWithArguments, object[] staticArguments)
    {
        return baseType;
    }

    public System.Linq.Expressions.Expression GetInvokerExpression(System.Reflection.MethodBase syntheticMethodBase, System.Linq.Expressions.ParameterExpression[] parameters)
    {
        return null;
    }

    public IProvidedNamespace[] GetNamespaces()
    {
        return new IProvidedNamespace[] { (IProvidedNamespace) this };
    }

    public System.Reflection.ParameterInfo[] GetStaticParameters(Type typeWithoutArguments)
    {
        return new ParameterInfo[] { };
    }

    public event EventHandler Invalidate;

    public void Dispose()
    {
    }

    public IProvidedNamespace[] GetNestedNamespaces()
    {
        return new IProvidedNamespace[] { };
    }

    public Type[] GetTypes()
    {
        return new Type[] { baseType };
    }

    public string NamespaceName
    {
        get { return "TestTypeProvider"; }
    }

    public Type ResolveTypeName(string typeName)
    {
        if (string.Equals(typeName, "StaticType"))
        {
            return this.baseType;
        }
        return null;
    }
}

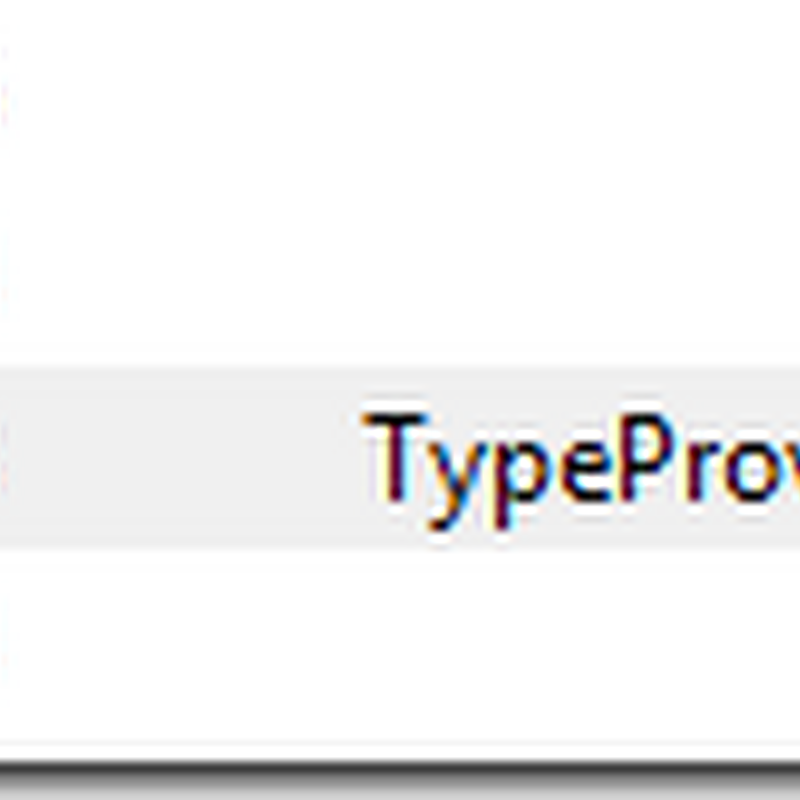

I set breakpoints in every method and property above, then choose Debug, Attach to Process and attach to the other instance of Visual Studio:

Switching back to the other instance, I add a reference to my custom type provider, and bam, we hit the first breakpoint. Awesome. Progress.

Checking out what config gets passed into our constructor:

If I keep hitting F5, it hits the breakpoints in this order:

1. GetNamespaces()
2. NamespaceName { get; }
3. GetTypes()
4. GetNestedNamespaces()

Then it repeats once more, starting at the constructor.

This is all good news – it means that I’m not missing some strange attribute or other construct. My type provider is being initialised and queried, so I guess at the moment I get the “This is not a provided type” message because I’m not implementing some or all of ITypeProvider or IProvidedNamespace correctly. This is something I can work on by getting my head back into FSharp.Data.TypeProviders. Watch this space.

As an aside – notice the TemporaryFolder property in the config above. If I take a look into the location to which it points, I find a number of generated dlls for the past few days. It turns out these are generated by the Linq to SQL type provider (which I have been testing alongside this investigation) in pairs – one for the type that I generate in my F# code (dbSchema) and another which contains the actual DataContext class and classes for each table in my database. This is good – I understand some more about what is generated under the hood for type providers, and should help me with the next stage of the investigation.
